Wzbudnik wibracyjny IMV SERIA A

Najnowsza seria systemów wibracyjnych. Seria A powstała w oparciu o rosnące potrzeby naszych klientów.

•

Zalety w porównaniu z konwencjonalnymi seriami chłodzonymi powietrzem:

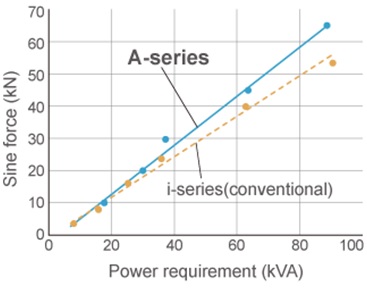

– większe siły wymuszające;

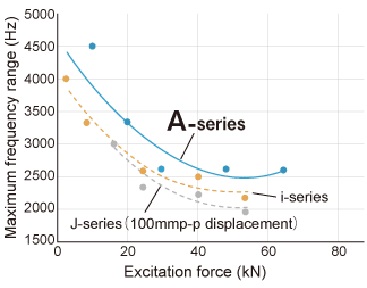

– większy zakres częstotliwości;

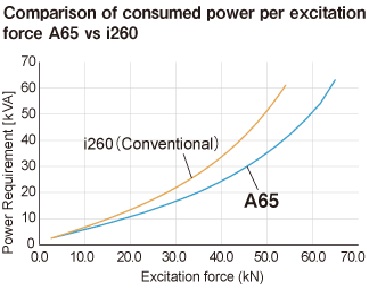

– mniejsze zużycie energii. Automatyczna funkcja umożliwia oszczędzanie energii dla wszystkich zakresów sił.;

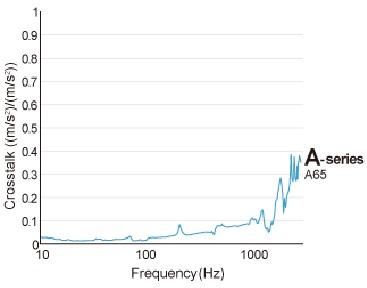

– zmniejszenie przesłuchów między kanałami umożliwia  precyzyjna realizację testów;

	System Model		A03/SA1MM	A10/SA1HM	A10/EM1HM	A20/SA2HM	A20/EM2HM
	Frequency Range(Hz)		0-4000	0-4500*4	0-4500*4	0-3300	0-3300
System Specifications	Rated Force	Sine(kN)	3	10	10	20	20
		Random (kN rms)*1	3	10	10	20	20
		Shock(kN)	9	20	20	40	40
		High Velocity Shock(kN)	–	–	16	–	32
	Maximum Acc.	Sine(m/s2)	1000	900	900	900	900
		Random (m/s2 rms)	700	630	630	630	630
		Shock (m/s2 peak)	2000	1818	1818	1818	1818
		High Velocity Shock(m/s2 peak)	–	–	1454	–	1454
	Maximum Vel.	Sine(m/s)	2.0	2.0	2.0	2.0	2.0
		Shock (m/s peak)	2.3	2.5	2.5	2.5	2.5
		High Velocity Shock(m/s peak)	–	–	3.5	–	3.5
	Maximum Dsp.	Sine(mmp-p)	30	51	51	51	51
		Maximum Travel (mmp-p)	40	64	64	66	66
	Maximum Load(kg)		120	200	200	300	300
	Power Requirements (kVA)*2		8.7	20.4	20.4	30	30
	Breaker Capacity(A)*3		40	75	75	125	125
Vibration Generator	Model		A03	A10	A10	A20	A20
	Armature Mass(Kg)		3	11	11	22	22
	Armature Diameter(φmm)		128	210	210	280	280
	Allowable Eccentric Moment(N･m)		160	294	294	700	700
	Dimensions(mm) WxHxD		868x700x500	946x827x676	946x827x676	1038x920x775	1038x920x775
	Shaker Body Diameter(mm)		480	585	585	678	678
	Mass(kg)		400	1080	1080	1600	1600
Power Amplifier	Model		SA1MM-A03	SA1HM-A10	EM1HM-A10	SA2HM-A20	EM2HM-A20
	Maximum Output(kVA)		5.4	11	11	21	21
	Dimensions(mm) WxHxD		580x1950x850	580x1950x850	580x1950x850	580x1950x850	580x1950x850
	Mass(kg)		240	280	330	350	410
Controller	Vibration Controller		See Vibration Controller K2
Cooling	Cooling Method		Air cooling
	Blower	Dimensions (mm)WxHxD*6	600x1905x613	1045x2285x711	1045x2285x711	931x2175x538	931x2175x538
		Mass(kg)	45	150	150	150	150
		Wattage(kw)	0.4	3.7	3.7	5.5	5.5
		Duct Hose Diameter(φ)	125	125	125	200	200









	System Model		A30/SA3HM	A30/EM3HM	A45/SA5HM	A45/EM5HM
	Frequency Range(Hz)		0-2600	0-2600	0-2600	0-2600
System Specifications	Rated Force	Sine(kN)	30	30	45	45
		Random (kN rms)*1	30	30	45	45
		Shock(kN)	60	60	90	90
		High Velocity Shock(kN)	–	50	–	80
	Maximaum Acc.	Sine(m/s2)	900	900	900	900
		Random (m/s2 rms)	630	630	630	630
		Shock (m/s2 peak)	1818	1818	1800	1800
		High Velocity Shock(m/s2 peak)	–	1515	–	1600
	Maximum Vel.	Sine(m/s)	2.0	2.0	2.0	2.0
		Shock (m/s peak)	2.5	2.5	2.5	2.5
		High Velocity Shock(m/s peak)	–	3.5	–	3.5
	Maximum Dsp.	Sine(mmp-p)	76.2	76.2	76.2	76.2
		Maximum Travel (mmp-p)	82	82	82	82
	Maximum Load(kg)		400	400	600	600
	Power Requirements (kVA)*2		36	36	57	57
	Breaker Capacity(A)*3		125	125	200	200
Vibration Generator	Model		A30	A30	A45	A45
	Armature Mass(Kg)		33	33	50	50
	Armature Diameter (φmm)		290	290	436	436
	Allowable Eccentric Moment(N･m)		850	850	1550	1550
	Dimensions (mm)WxHxD		1100x1048x840	1100x1048x840	1232x1215x1040	1232x1215x1040
	Shaker Body Diameter(mm)		725	725	825	825
	Mass(kg)		2000	2000	3000	3000
Power Amplifier	Model		SA3HM-A30	EM3HM-A30	SA5HM-A45	EM5HM-A45
	Maximum Output(kVA)		31	31	44	44
	Dimensions (mm)WxHxD		580x1950x850	580x1950x850	580x1950x850	1160x1950x850
	Mass(kg)		420	500	900	1000
Controller	Vibration Controller		See Vibration Controller K2
Cooling	Cooling Method		Air cooling
	Blower	Dimensions (mm)WxHxD*6	931x2175x538	931x2175x538	1160x2405x787	1160x2405x787
		Mass(kg)	150	150	250	250
		Wattage(kw)	5.5	5.5	11	11
		Duct Hose Diameter(φ)	200	200	250	250









	System Model		A65/SA6HM **	A65/EM7HM **	A74/EM8HM **	A74/EM10HM **
	Frequency Range(Hz)		0-2600*5	0-2600*5	0-2600*5	0-2600*5
System Specifications	Rated Force	Sine(kN)	65	65	74	74
		Random (kN rms)*1	65	65	74	74
		Shock(kN)	130	130	148	180
		High Velocity Shock(kN)	–	120	120	160
	Maximaum Acc.	Sine(m/s2)	900	900	1000	1000
		Random (m/s2 rms)	630	630	630	630
		Shock (m/s2 peak)	1806	1806	2000	2432
		High Velocity Shock(m/s2 peak)	–	1666	1621	2162
	Maximum Vel.	Sine(m/s)	2.0	2.0	2.0	2.0
		Shock (m/s peak)	2.5	2.5	2.5	2.5
		High Velocity Shock(m/s peak)	–	3.5	3.5	3.5
	Maximum Dsp.	Sine(mmp-p)	76.2	76.2	76.2	76.2
		Maximum Travel (mmp-p)	82	82	82	82
	Maximum Load(kg)		1000	1000	1000	1000
	Power Requirements (kVA)*2		83	83	100	100
	Breaker Capacity(A)*3		300	300	350	350
Vibration Generator	Model		A65	A65	A74	A74
	Armature Mass(Kg)		72	72	74	74
	Armature Diameter (φmm)		446	446	446	446
	Allowable Eccentric Moment(N･m)		1550	1550	1550	1550
	Dimensions (mm)WxHxD		1310x1253x1040	1310x1253x1040	1310x1253x1040	1310x1253x1040
	Shaker Body Diameter(mm)		925	925	925	925
	Mass(kg)		3500	3500	3500	3500
Power Amplifier	Model		SA6HM-A65	EM7HM-A65	EM8HM-A74	EM10HM-A74
	Maximum Output(kVA)		68	68	100	100
	Dimensions (mm)WxHxD		580x1950x850	1160x1950x850	1160x1950x850	1740x1950x850
	Mass(kg)		1000	1150	1500	1850
Controller	Vibration Controller		See Vibration Controller K2
Cooling	Cooling Method		Air cooling
	Blower	Dimensions (mm)WxHxD*6	1280x2540x844	1280x2540x844	1462x2800x930	1462x2800x930
		Mass(kg)	268	268	536	536
		Wattage(kw)	18.5	18.5	30	30
		Duct Hose Diameter(φ)	250	250	250	250
